ROI Color File

This example shows the setup of a lung study where the user must segment two regions of interest. When in the Segment Editor tab, only 2 colors options are presented to the user.

The main attributes of interest used for this example include:

  • ROIColorFile="Lung_SABR_Study_colors"
    • an attribute in the Session root element
    • name of the file holding color rgba definition
    • there is no .txt extension in this attribute
  • EnableSegmentEditor="Y"
    • an attribute of the Page element
    • to open the Segment Editor tab in the Image Quizzer
  • SegmentRequiredOnAnyImage="Y"
    • an attribute of the Page element
    • the user cannot advance to the next Page of images and questions until a contour has been created on any of the images displayed

Prep

Download and save Slicer's CTChest sample data.

Suggested folder structure to match script:

.
└─ ImageQuizzerData/
      └─ ImageVolumes/
          └─ CTChest/
                └─ CTChest.nrrd

Create color file

Create the color text file. Format: roi# roiName red green blue alpha

Place this file in the same directory where the master quiz file is located.

Lung_SABR_Study_colors.txt

1 Ground_glass_opacity_(GGO) 241 214 145 255
2 Consolidative_region 191 2 34 255

Script example

Lung_SABR.xml

<Session ROIColorFile="Lung_SABR_Study_colors"
    <Page ID="Patient 1" Descriptor="Lung SABR Study" EnableSegmentEditor="Y" SegmentRequiredOnAnyImage="Y">
        <Image ID="CT" Type="Volume">
                <DefaultDestination>Red</DefaultDestination>
                <Layer>Background</Layer>
                <DefaultOrientation>Axial</DefaultOrientation>
                <Path>ImageVolumes\CTChest\CTChest.nrrd</Path>
        </Image>
        <Image ID="CT" Type="Volume">
                <DefaultDestination>Green</DefaultDestination>
                <Layer>Background</Layer>
                <DefaultOrientation>Sagittal</DefaultOrientation>
                <Path>ImageVolumes\CTChest\CTChest.nrrd</Path>
        </Image>
        <Image ID="CT" Type="Volume">
                <DefaultDestination>Yellow</DefaultDestination>
                <Layer>Background</Layer>
                <DefaultOrientation>Coronal</DefaultOrientation>
                <Path>ImageVolumes\CTChest\CTChest.nrrd</Path>
        </Image>
        <QuestionSet Descriptor="Lung SABR Study">
            <Question Descriptor="Assessment" Type="Radio">
                <Option>Injury</Option>
                <Option>Local recurrence</Option>
            </Question>
        </QuestionSet>
    </Page>
</Session>

Display results

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

Screenshot of quiz options:

Quiz radio button options

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

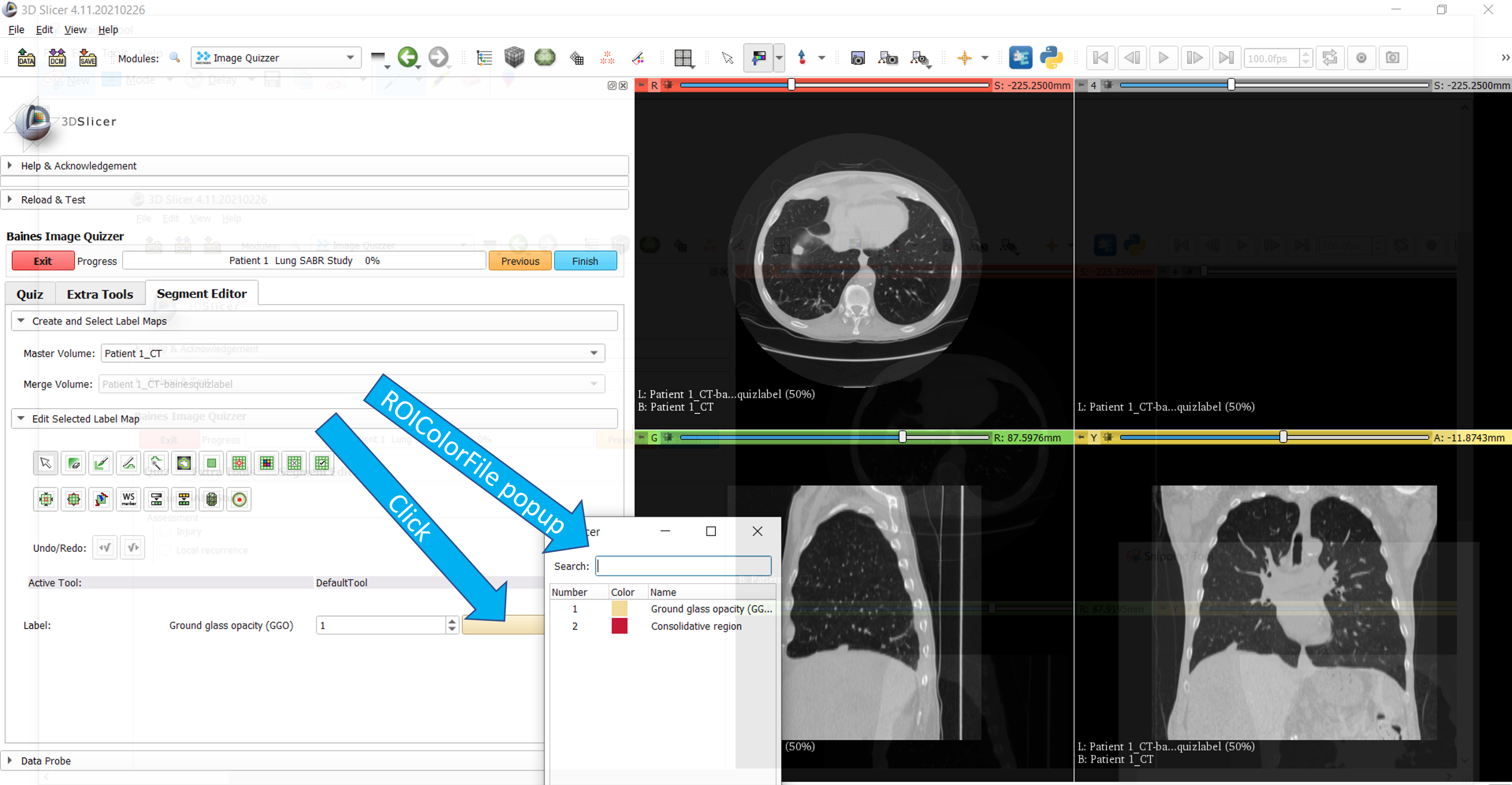

Screenshot of ROI color options

Popup window shows available colors. Access by clicking on the color bar.

Segment color options

See also

Scripting references section:

References:

Parts of this example are based on a previous observer study carried out in our lab.

Mattonen, S. A., Palma, D. A., Johnson, C., Louie, A. v, Landis, M., Rodrigues, G., Chan, I., Etemad-rezai, R., Yeung, T. P. C., Senan, S., & Ward, A. D. (2015). Detection of Local Cancer Recurrence After Stereotactic Ablative Radiation Therapy for Lung Cancer : Physician Performance Versus Radiomic Assessment. Radiation Oncology Biology. https://doi.org/10.1016/j.ijrobp.2015.12.369
